OCELOT TECHNOLOGIES

Touch Screen POS Machine

Features

SSD 64GB (default) can optional Larger capacity
17 flat Multi-point capacitive touch screen
Card reader and VFD customer display for optional
I/O Interface Panel is hidden

Specifications

Optional Peripherals

VFD220E

Main Board

Intel Celeron Processor

CPU

Intel Celeron J1900 Quad core 2.0 GHZ

Chipset

Intel NM70

Memory Support

DDRIII 1066/1333*1 4GB (default)

Hard Driver

SSD 64 GB (default)

Brightness

350cd/m2 (Resolution 1280*1024(max)

View angle

Horizon: 150; Vertical :140

Touch screen

Multi-point capacitive touch screen

Compliance

FCC Class A/CE Mark/LVD/CCC

Operating System

Windows XP above, Embedded,WEPOS,Linux

Power adapter

110-240V/50-60HZ AC power, Input DC12/5A out put

Desktop barcode Reader

Features

Support Multiple kinds of 1D and 2D barcodes
4mil scanning resolution
480*640 CMOS Sensor
Easy to scan screen barcodes

Specifications

Processor

32-bit ARM MCU

Interface

USB

Invoices

Support

Indicator

Buzzer+Lamp indicator（LED）

OS Support

Linux，Android，Windows XP、7、8、10，MAC

Electrostatic Protection

15KV air charging

Reading Angles

Roll360°, Pitch45°,Yew60°

Scanning Depth

Code39 4.17mil（15 bytes）： 7cm - 13cm

Code39 10.83mil（16 bytes）：8cm - 15cm

Data Matrix 10.83mil（8 bytes）： 6cm - 11cm

Code QR 10.83mil（8 bytes）： 5cm - 13cm

Working humidity

0 to 45 degrees centigrade, 10%~80% No condensation

Storage temperature

-20 to 60 degrees centigrade , 10%~90% No condensation

Features

Specifications

Screen touchable Monitor

Features

High resolution Support 1280*1024
Grade A LCD panel
Lifetime: 50 million touch.

Specifications

Resolution

1280*1024

Number of colors

16.2M

Brightness

300cd/m², Viewing Angle 150/135

Response Time

8ms, Touch Panel - 17", 5-wire

Optical Clarity

80+%

Endurance Test strikes

Over 10millions

Operating Voltage

DC5V

Faceplate Surface

Anti-glare coating, glare coating

Isolation Resistance

20MΩ ＠ DC25V

Sealable against

dust ,water, oil , static

Glass Thickness

0.7mm, 1.1mm,1.8mm

Resistance

200Ω~900Ω

Outside Dimension

294.5mm*366mm

Receipt printer

Features

Mini size suitable for portable application
Windows, Java, Linux, Android (or Android +IOS ) operation system supported
Bluetooth, USB and RS232 communication supported
SDK for Android available
1D, 2D barcode (QR code), and image printing supported
Can change the printer name, password, baud rate online
One printer can connected with up to 8 smart devices (7 Android, one Apple device)
Low power consumption and large capacity Lithium battery (1500mAh), 4~5 days standby
Powered by rechargeable battery, power adapter, or car charger (specified models)

Specifications

Print commands

ESC/POS compatible command set

Print speed

Up to 90mm/sec

Column capacity

32 columns/ 16columns

Paper dimensions

58.0±0.1mm x diameter 40.0mm

Interface

USB, RS-232，Bluetooth (optional)

Processor

32-bit MCU

Battery Power

7.4V DC/ 1500mAh; battery can stay by for 4-5 days

Other features

Paper detection, manual shut down

Device name

Can be customized, letter and digital for option, at max 30 ASCII characters.

Flash

256KB

Print commands

ESC/POS compatible command set

Power Adapter

9V DC/2A

Character size

1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(WxH)

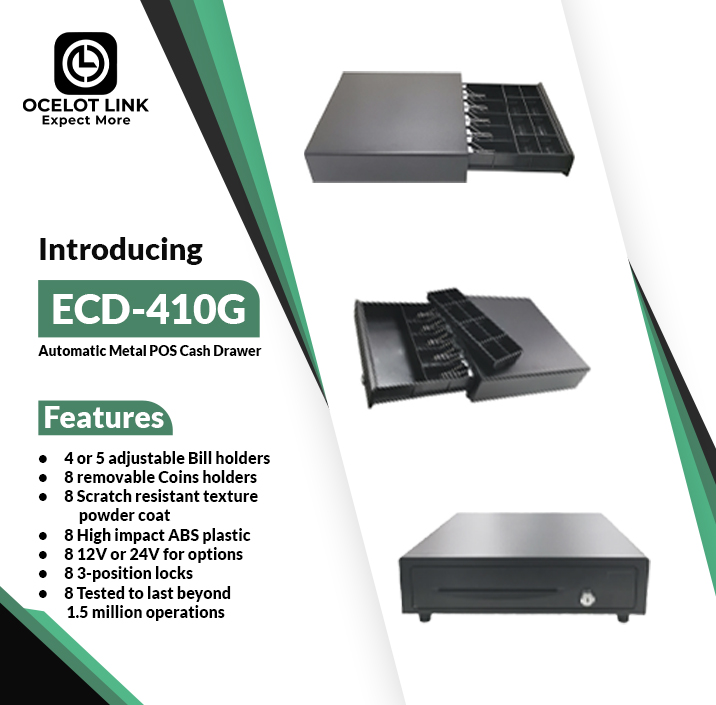

Cash Drawer

Features

•4 or 5 adjustable Bill holders
•8 removable Coins holders
•8 Scratch resistant texture powder coat
•8 High impact ABS plastic
•8 12V or 24V for options
•8 3-position locks
•8 Tested to last beyond 1.5 million operations

Specifications

Material

Flip top: 0.8mm SPCC powder spray the surface of cold rolled plate

Bottom: 1.0mm SECC

Bill tray

Four position width: 85/84/84/85mm

Five position width:72/63/63/65/70mm

Length:186mm; Depth: 55mm

Coin tray

8 removable position width: 82; Length: 57; Depth: 46

Lock

3 locks

Power

12V / 24V for option

Lifetime

Tested to minimum 1.5 million cycles

Interface

RJ11

Color

Black or White

Weight

5.65 kg (net), 6kg (gross)

Dimensions

410(W) x 415(L) x 100mm(H) (with feet of 10mm)

Barcode Scanner

Features

High performance imaging technology
Omni-directional scanning;
•4 mil excellent scanning accuracy
•Multi special function setting supported
High compatibility for all major 1D and 2D symbols;
•Can read the barcode on the screen and color barcode.

Specifications

Interface

USB; (RS232 can be customized)

System support

Linux，Android，Windows XP、7、8、10，MAC

Processor

32-bit ARM MCU + DSP

Trigger mode

Manual, Continuous scanning, Auto-sensing

Power supply

DC 5V ±5%

Power consumption

375mW(Working);226mW(standy) ;750mW(Max

Scanning Angel

andy);750mW(Max) Roll360°,Pitch30°,Yaw45°

Scanning Depth

Code39 4.17mil(15 bytes): 6cm - 12cm

Code128 4.17mil(16 bytes):7cm - 10cm

Data Matrix 10.83mil(8 bytes):5cm - 16cm

Code QR 10.83mil(8 bytes):7cm - 12cm

ESD Protection

15KV air discharge

Shock resistance

1.5m free fall on concrete surface

Features

Specifications
